Water Reuse Technology
for efficient concentration and treatment of industrial waste liquids

Oil & Gas Produced Water Processing

Concentration of these waste fluids reduces hauling cost, and produces an excellent quality distilled water for further reuse or discharge.

Water Reuse Technology, Inc. is a California engineering company that designs and manufactures high performance distillation systems using the proprietary Wiped-Film, Rotating-Disk (WFRD™) evaporator.

The WFRD™ is a highly efficient distiller used for the concentration and treatment of industrial waste liquids, and desalination of seawater or brackish well water.  The WFRD™system converts the input wastewater stream into two separate output streams.  The product stream is highly purified distilled water, and the by-product stream is concentrated brine.  It features a unique design resulting from more than 40 years of development and has the highest rated performance of any distillation technology.

The WFRD™ technology features:

  • High availability
  • High reliability
  • High energy efficiency
  • High recovery ratio
  • High product purity
  • Low temperature operation
  • Excellent compatibility with solar systems
  • Small equipment footprint

TX_oil_well.JPGCA_Injection_Well_Site.JPGDelivery_trucks.JPGOilWell3.JPGFendley_FB-Brine-Dist.JPG

Winery Wastewater Processing

Reclamation of distilled water from winery wastewater may result in reuse of 95% of the water that would otherwise go down the drain, or to waste ponds.

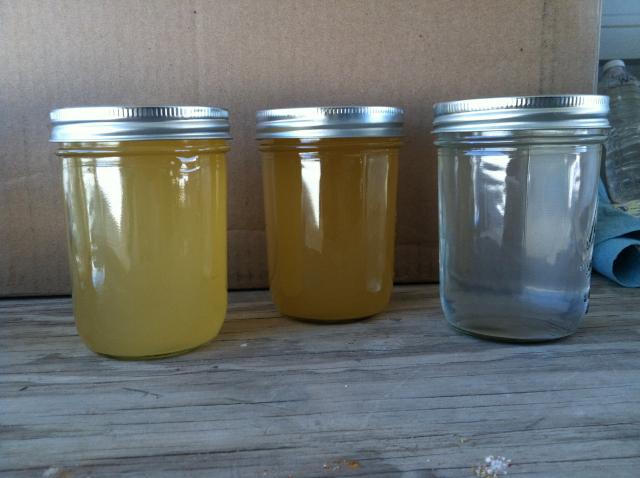

Gas Well Produced Water

    - 95% Recovered

    - Feed TDS = 16,000 ppm

    - Product TDS = 44 ppm

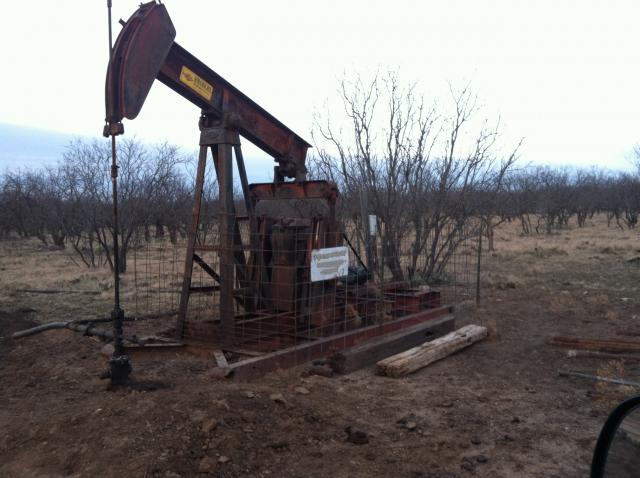

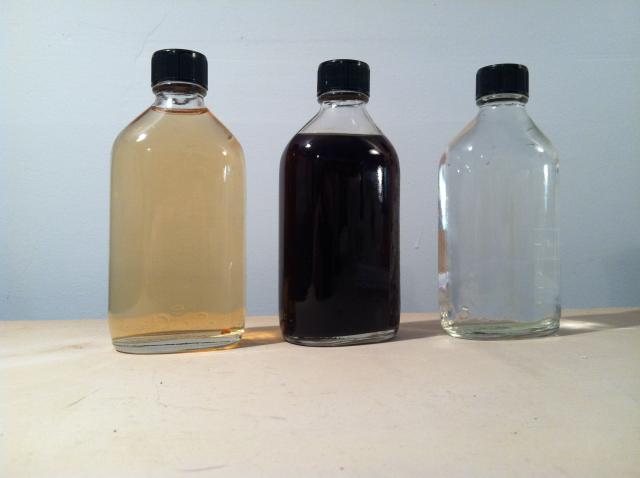

Oil Well Produced Water

    - 45% Recovered

    - Feed TDS = 134,000 mg/L

    - Product TDS = 120 mg/L
